Dokaled

3191

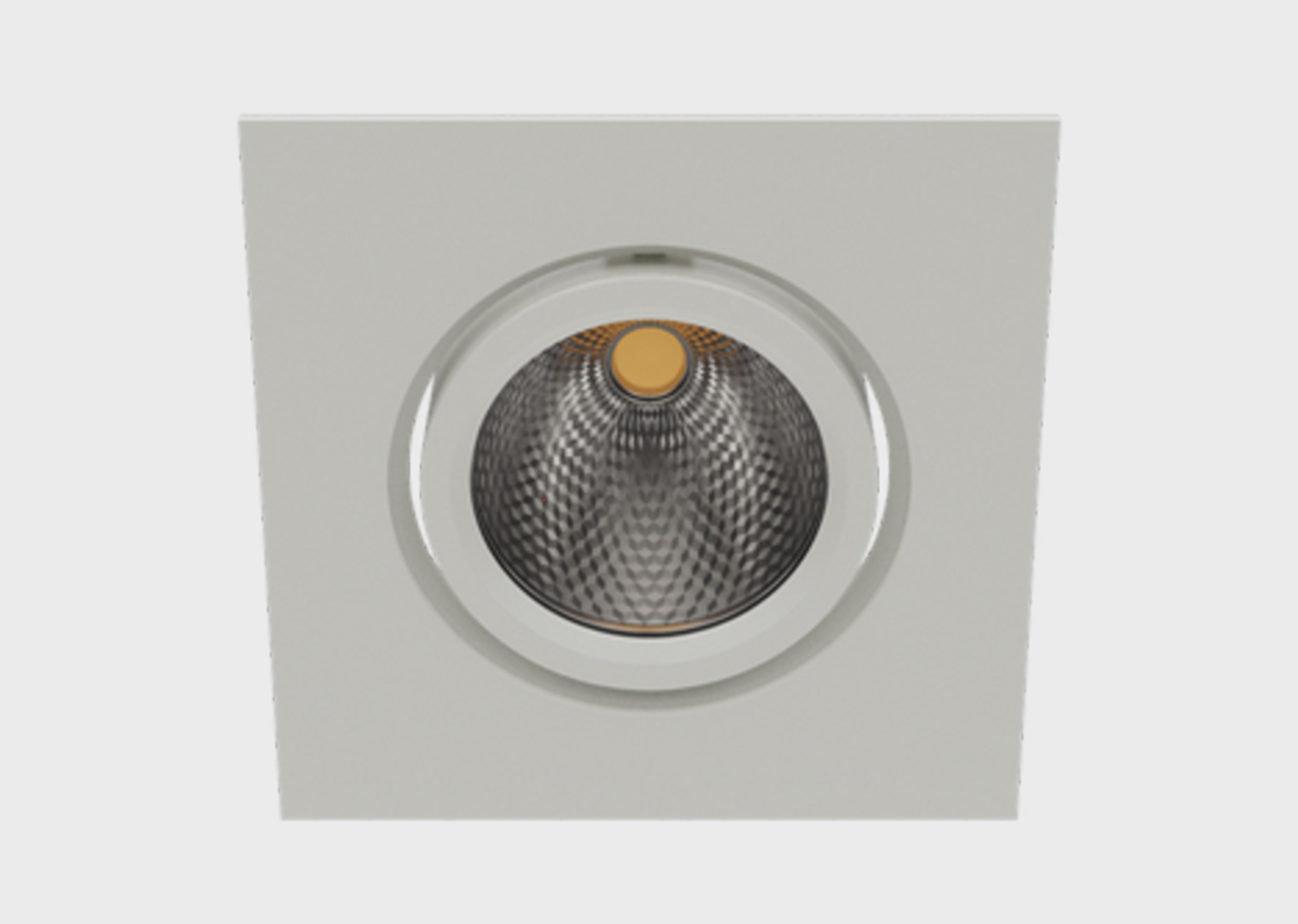

The 3190 Recessed Series is a professional square recessed COB LED luminaire designed for jewellery stores, retail displays, museums, and premium commercial spaces. Featuring a high-performance COB LED light source, it delivers precise accent lighting with multiple beam angles, adjustable aiming capability, and a wide range of color temperature options for highlighting valuable products.

Technical Details
Technical Drawings
Photo & Video

Technical Specifications

The 3190 Recessed Series combines a die-cast aluminum body with advanced COB LED technology to provide reliable, high-efficiency lighting for professional applications. Available in multiple power options, the fixture offers adjustable horizontal and vertical aiming, interchangeable optical accessories, and excellent color rendering for demanding retail lighting environments.

Product Code	3191
Body	Die-cast Aluminum Body
Luminous Flux	2100 lm
CRI	80+, 90+
Power	20 W
Driver Current	500 mA
Light Resource	COB LED
Led Light Angle	14°, 36°, 60°
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6500K
Dali Feature	Optional
Voltage	220–240 V AC
Voltage Frequency	50–60 Hz

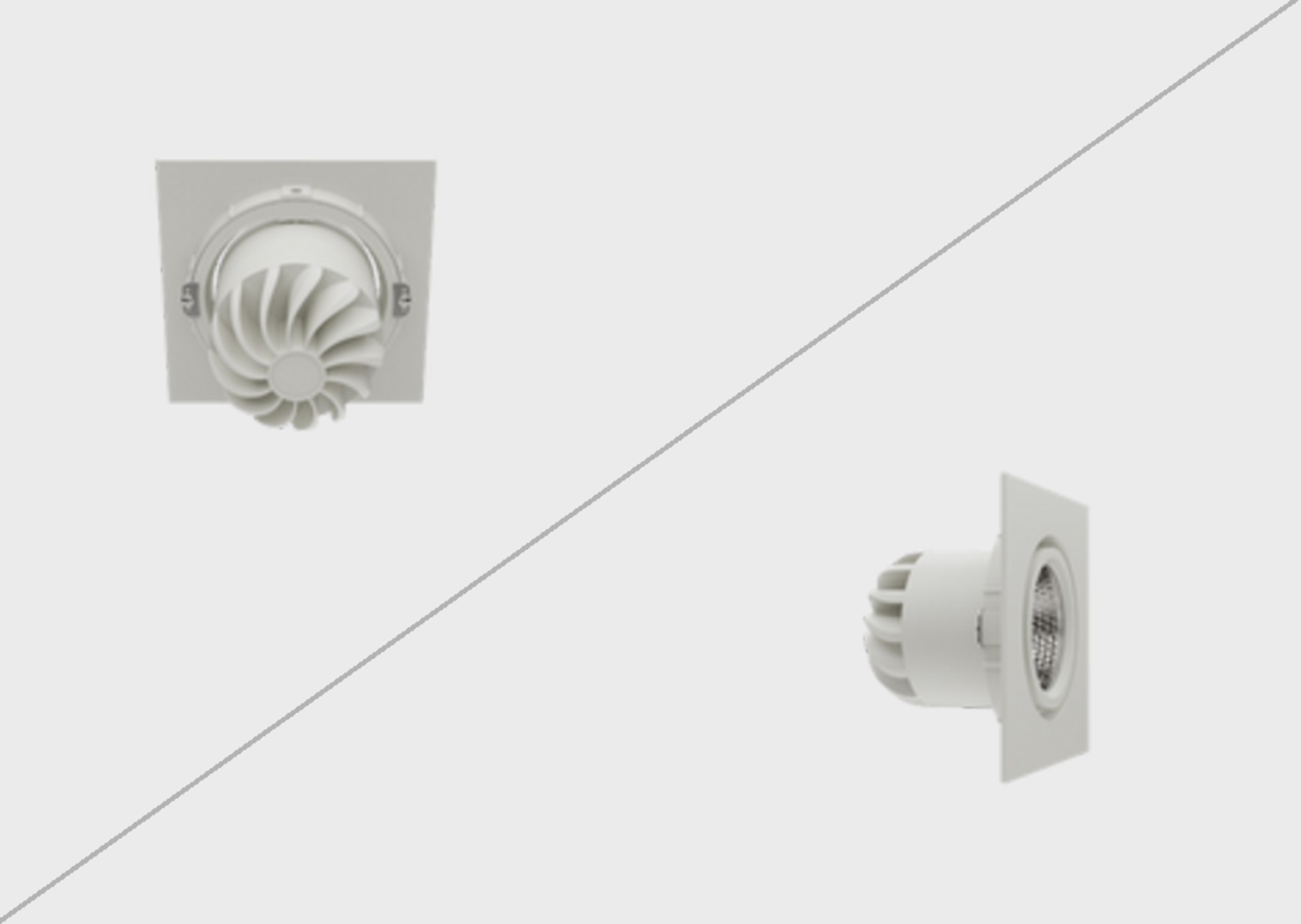

Control Type	Adjustable (30° Vertical / 30° Horizontal)
Protection Class	IP20
Electrical Protection Class	Class I
Application Type	Recessed
Size (wxlxh)(mm)	170 × 170 × 120 mm
Cutting Size	150 × 150 mm
Weight (kg)	1.20
Paint	Electrostatic Powder Coating
Accessories	Anti-glare Screen, Visor, Honeycomb Filter
Country of Origin	Turkey
Warranty	Up to 5 Years
