3292

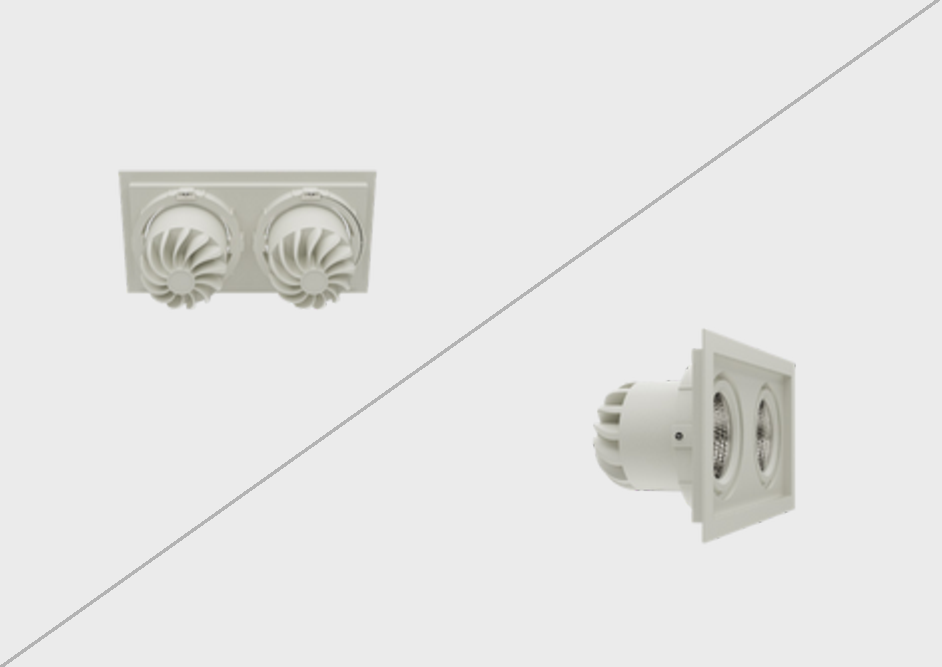

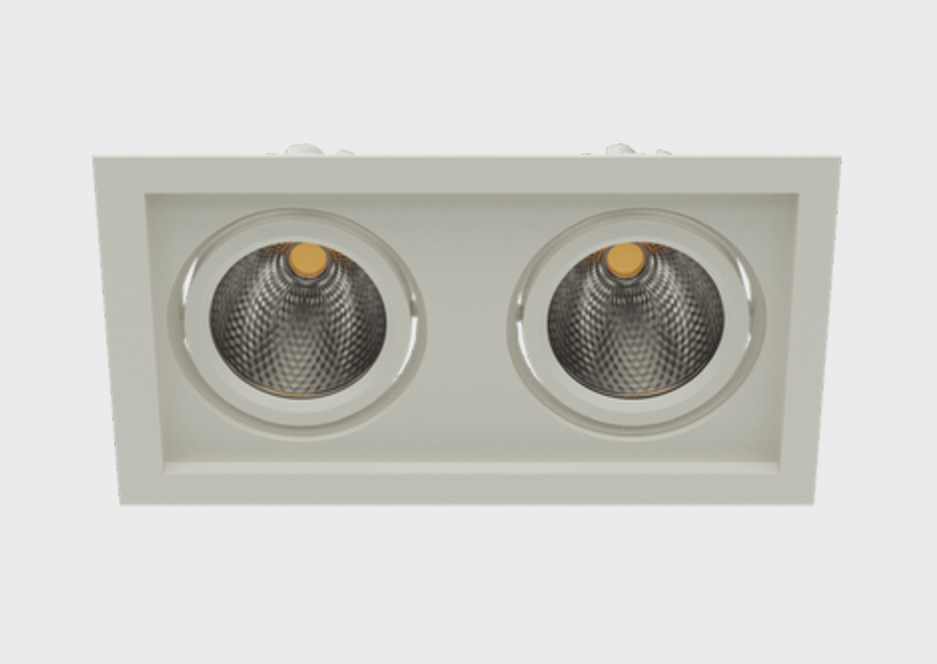

The 3290 Recessed Series is a premium rectangular recessed COB LED luminaire designed for jewellery stores, museums, luxury retail environments, and architectural lighting applications. Its deep recessed reflector minimizes glare while providing precise accent lighting, excellent color rendering, and superior visual comfort for premium display areas.

Technical Details

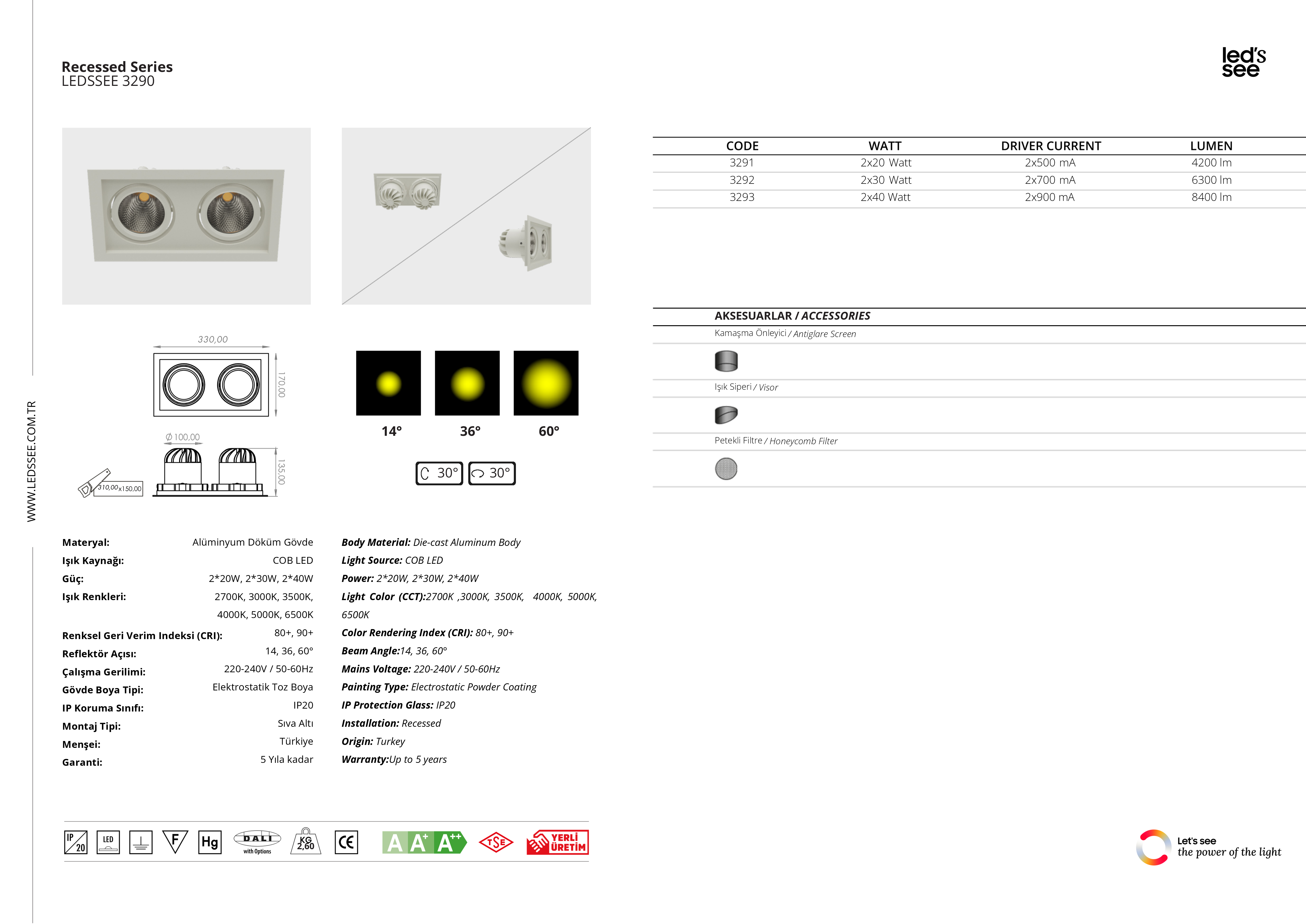

Technical Drawings
Photo & Video

Technical Specifications

The 3290 Recessed Series combines a robust die-cast aluminum body with advanced COB LED technology to deliver reliable and energy-efficient illumination. Featuring horizontal and vertical adjustment, interchangeable optical accessories, multiple beam angles, and a wide selection of color temperatures, it offers maximum flexibility for professional retail and commercial lighting applications.

Product Code	3292
Body	Die-cast Aluminum Body
Luminous Flux	6300 lm
CRI	80+, 90+
Power	2×30 W
Driver Current	2×700 mA
Light Resource	COB LED
Led Light Angle	14°, 36°, 60°
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6500K
Dali Feature	Optional
Voltage	220–240 V AC
Voltage Frequency	50–60 Hz

Control Type	Adjustable (30° Vertical / 30° Horizontal)
Protection Class	IP20
Electrical Protection Class	Class I
Application Type	Recessed
Size (wxlxh)(mm)	330 × 170 × 135 mm
Cutting Size	310 × 150 mm
Weight (kg)	2.60
Paint	Electrostatic Powder Coating
Accessories	Anti-glare Screen, Visor, Honeycomb Filter
Country of Origin	Turkey
Warranty	Up to 5 Years
