Dokaled

CR14-2814

JEWELRY

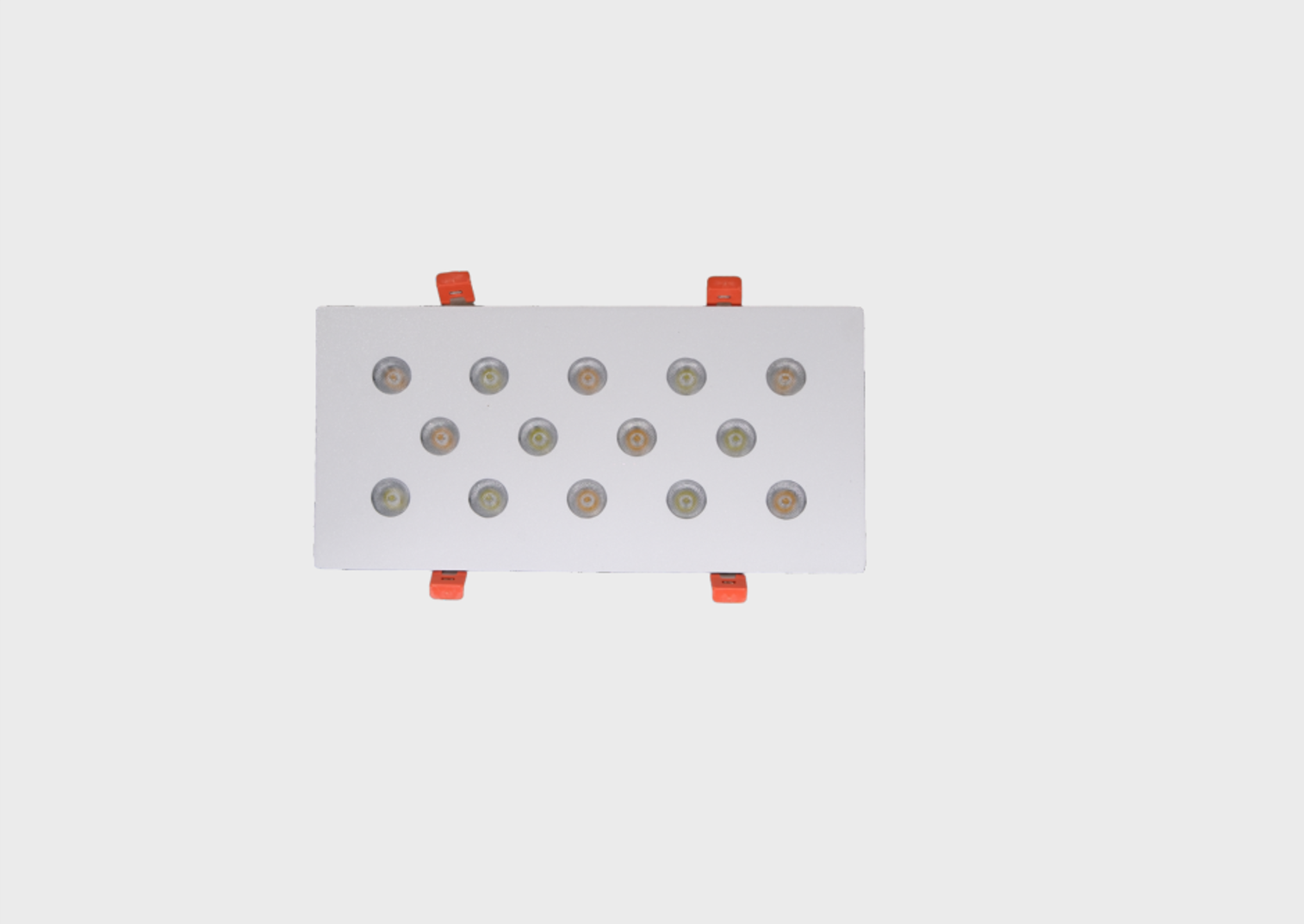

The CR14-2814 is a compact recessed LED luminaire designed for jewellery showcases, display cabinets, and premium retail environments. Equipped with High Power LED technology, it delivers efficient accent lighting with multiple beam angle and color temperature options for precise illumination.

Technical Details

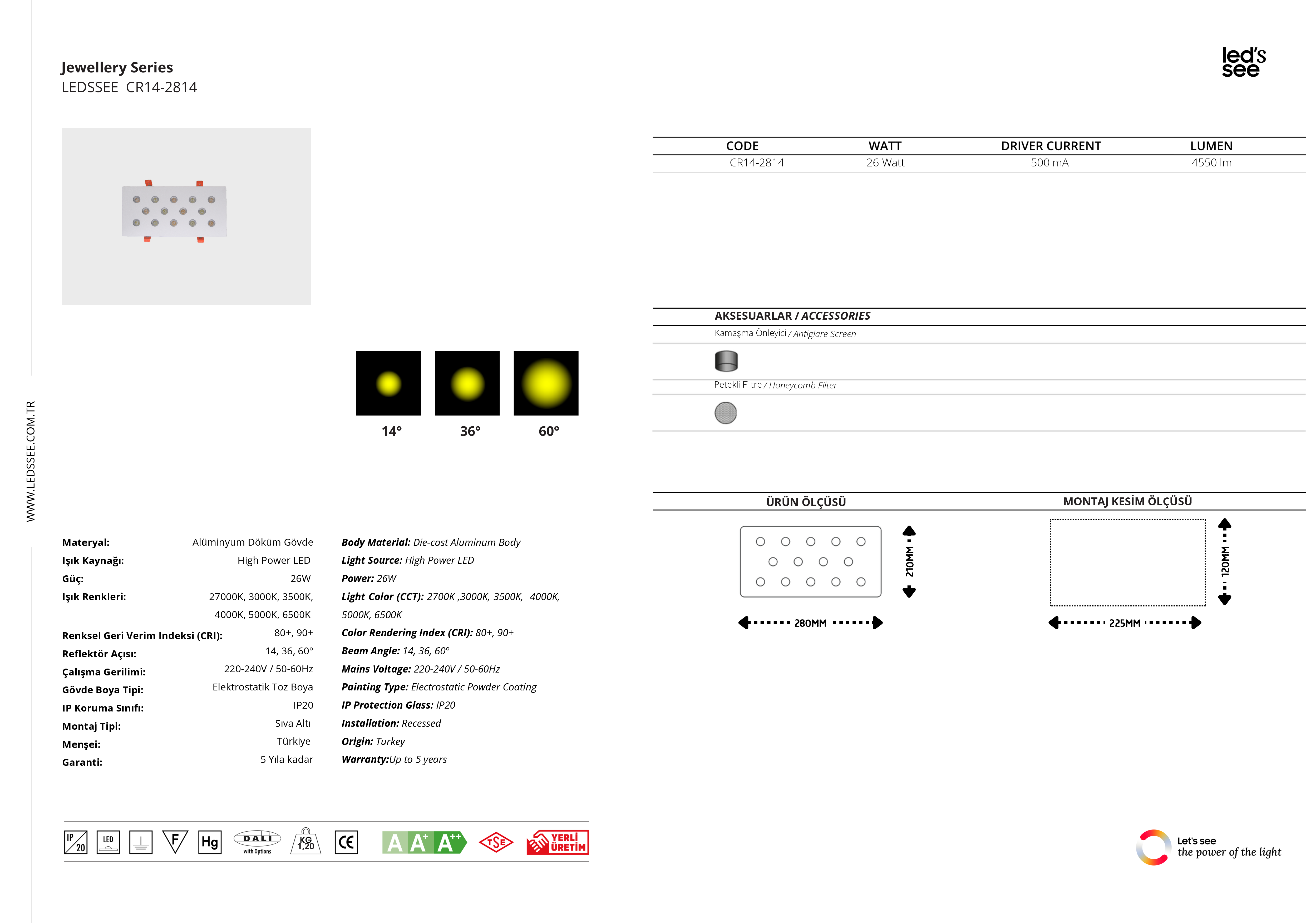

Technical Drawings
Photo & Video

Technical Specifications

The CR14-2814 features a durable die-cast aluminum body with an electrostatic powder-coated finish, ensuring reliable performance for professional lighting applications. Operating at 26 W with a luminous flux of 4550 lm, it offers multiple beam angle and color temperature options to meet a variety of jewellery and display lighting requirements.

Product Code	CR14-2814
Body	Die-cast Aluminum Body
Power	26 W
Light Resource	High Power LED
Led Light Angle	14°, 36°, 60°
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI	80+, 90+
Luminous Flux	4550 lm
Voltage	220–240 V AC
Voltage Frequency	50–60 Hz
Paint	Electrostatic Powder Coating

Protection Class	IP20
Application Type	Recessed
Size (wxlxh)(mm)	280 × 120 mm
Cutting Size	225 × 120 mm
Weight (kg)	1.20 kg
Electrical Protection Class	Class I
Dali Feature	Optional
Accessories	Antiglore Screen, Honeycomb Filter
Country of Origin	Turkey
Warranty	Up to 5 years
Driver Current	500 mA
