Dokaled

CRS28-100

JEWELRY

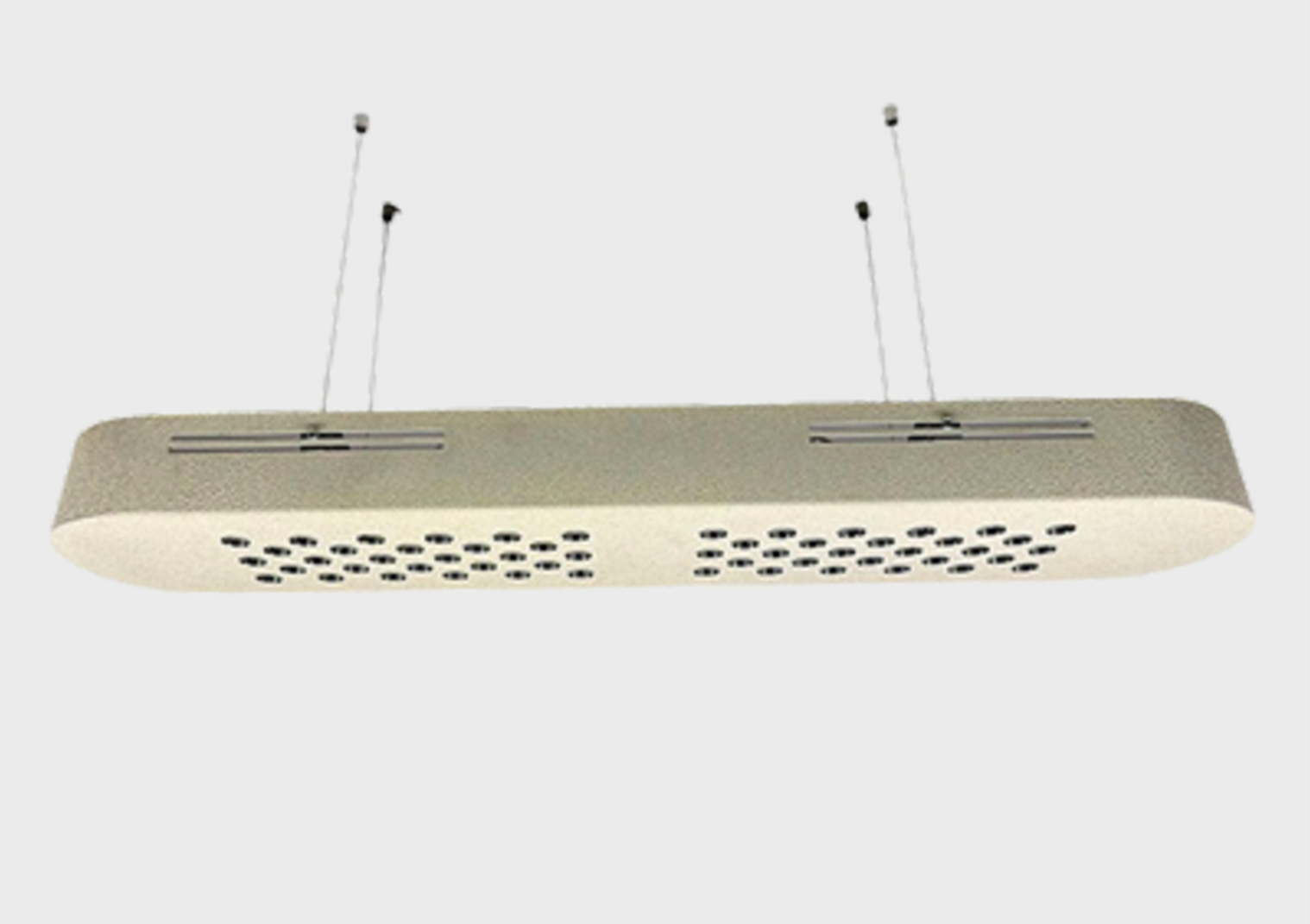

The CRS28-100 is a suspended linear LED luminaire designed for jewellery stores, luxury retail spaces, and premium commercial environments. Featuring High Power LED technology, it provides powerful and uniform illumination while its elegant suspended design enhances modern architectural interiors.

Technical Details

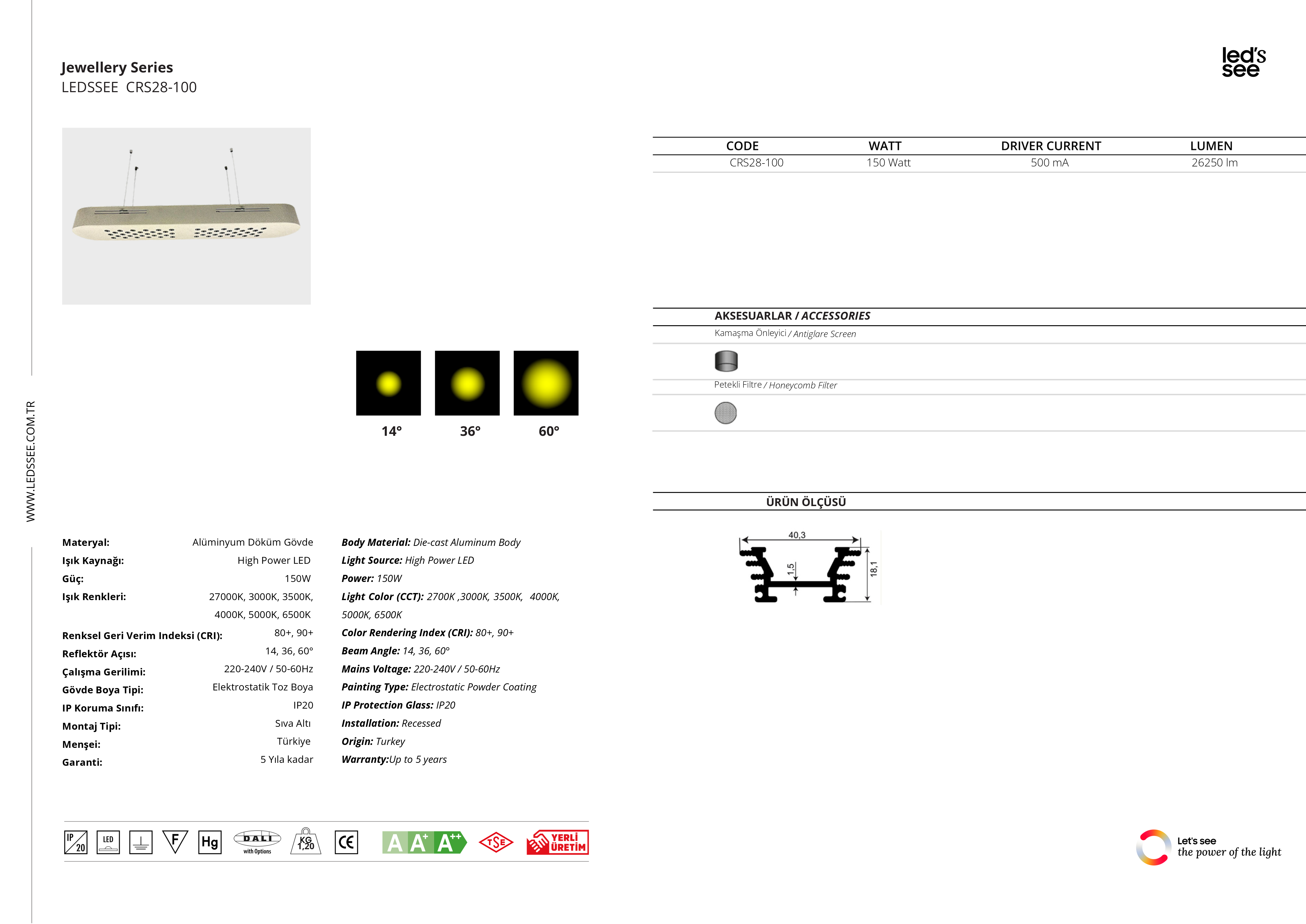

Technical Drawings
Photo & Video

Technical Specifications

The CRS28-100 combines a durable die-cast aluminum body with an electrostatic powder-coated finish for reliable long-term performance. Operating at 150 W and delivering 26,250 lm luminous flux, it offers multiple beam angle and color temperature options, making it an ideal solution for professional suspended jewellery and retail lighting applications.

Product Code	CRS28-100
Body	Die-cast Aluminum Body
Luminous Flux	26250 lm
CRI	80+, 90+
Power	150 W
Driver Current	500 mA
Light Resource	High Power LED
Led Light Angle	14°, 36°, 60°
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 6500K
Dali Feature	Optional
Voltage	220–240 V AC

Voltage Frequency	50–60 Hz
Control Type	Adjustable (Movement)
Protection Class	IP20
Electrical Protection Class	Class I
Application Type	Recessed
Size (wxlxh)(mm)	40.3 × 18.1 mm (Profile Cross Section)
Weight (kg)	1.20
Paint	Electrostatic Powder Coating
Accessories	Anti-glare Screen, Honeycomb Filter
Country of Origin	Turkey
Warranty	Up to 5 years
